Split Heat Pump

Products

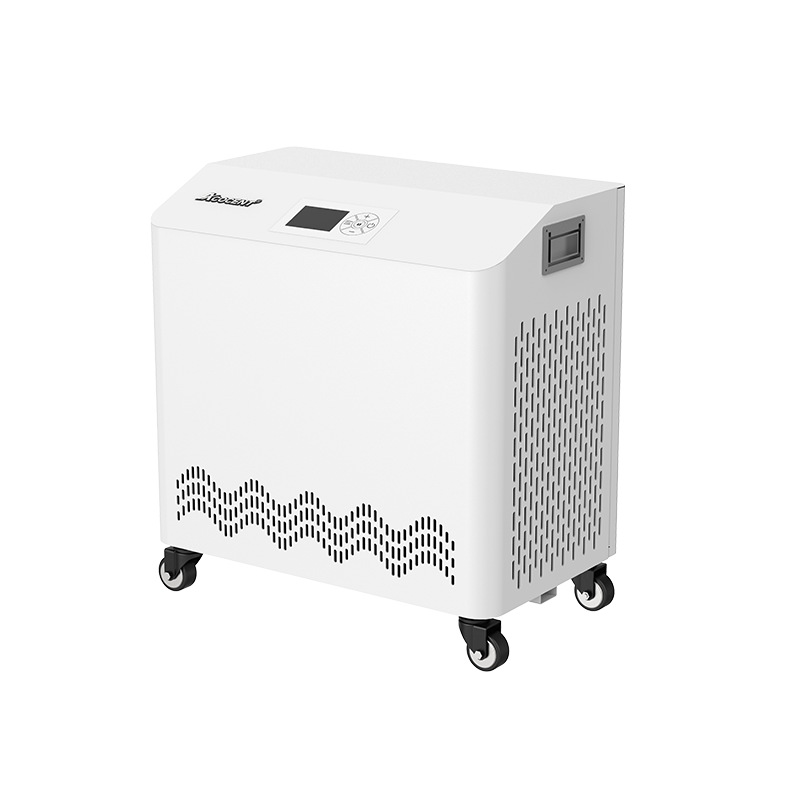

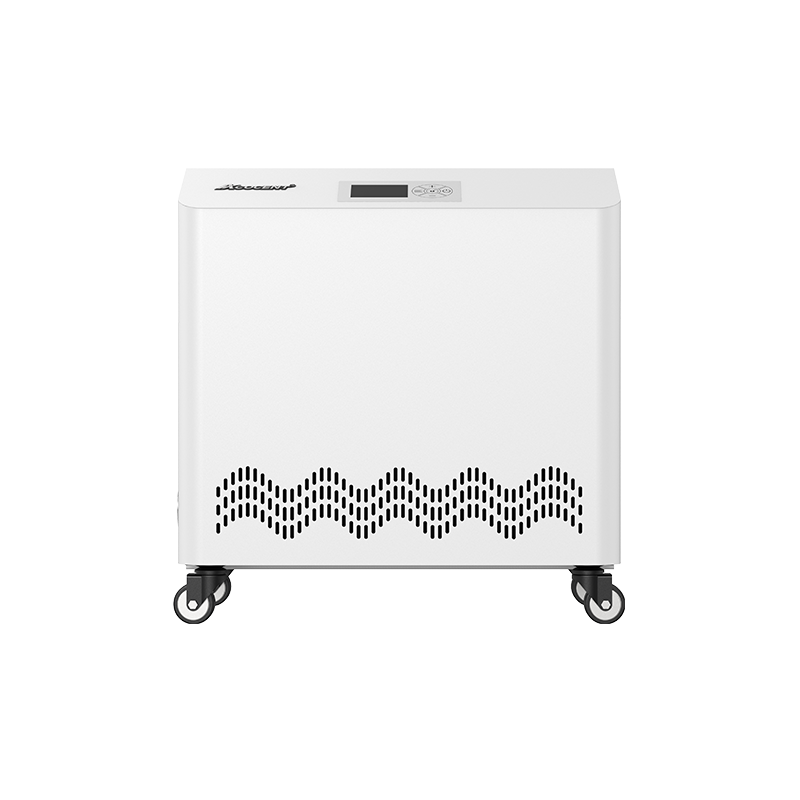

Split Ice Bath Chiller

Frostia Series

Experience fast recovery and invigorating cold therapy with our split ice bath chiller. Space-saving design, powerful performance, and precise temperature control.
Contact Us
Back




►Powerful & Reliable

1、Space-Smart Design, Compact, Mobile Unit Fits Home gyms, Clinics, and Training Facilities.

2、Multi-User Hygiene,  Built-in UV or Ozone Sterilization for Shared Use for Teams and Wellness Centers

3、Powerful Cooling & Heating Capacity

4、Plug & Play,  Only Take 5 to 10 minutes for Initial Installation

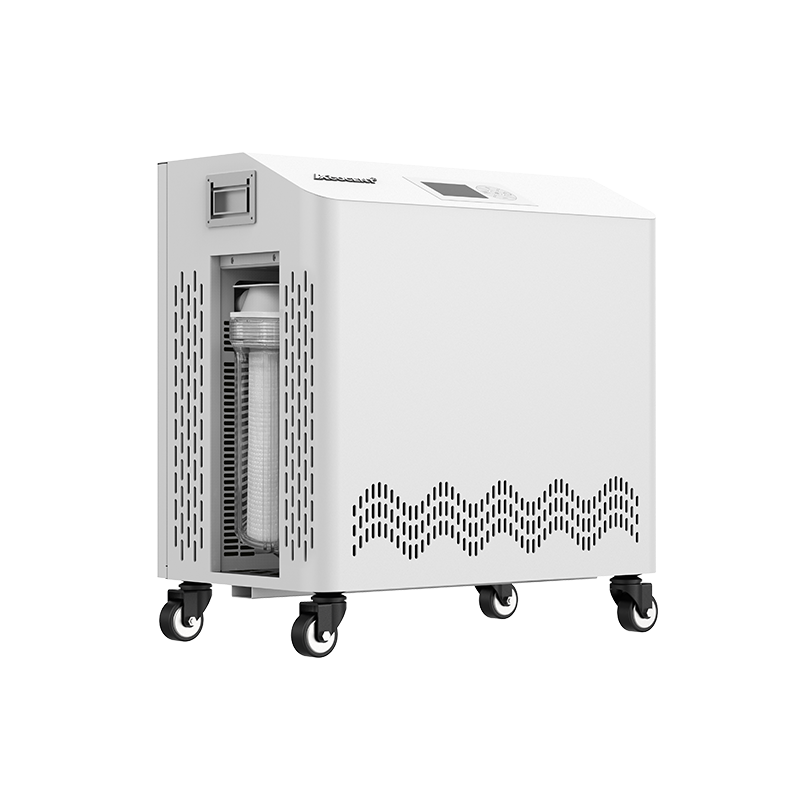

5、Built-in Water Pump and Filter, Easy to Use

6、Precision Temperature Contro, No More Messy Ice Buckets or Inconsistent Cooling

7、Smart Control, App connectivity for Personalized Cold Therapy Programs

8、Whisper Quiet Operation

9、Includes Drainage System for Easy Cleanup.

10、Plate Exchanger and Micro Duct Heat Exchanger

11、Eco-Friendly R32 Refrigerant

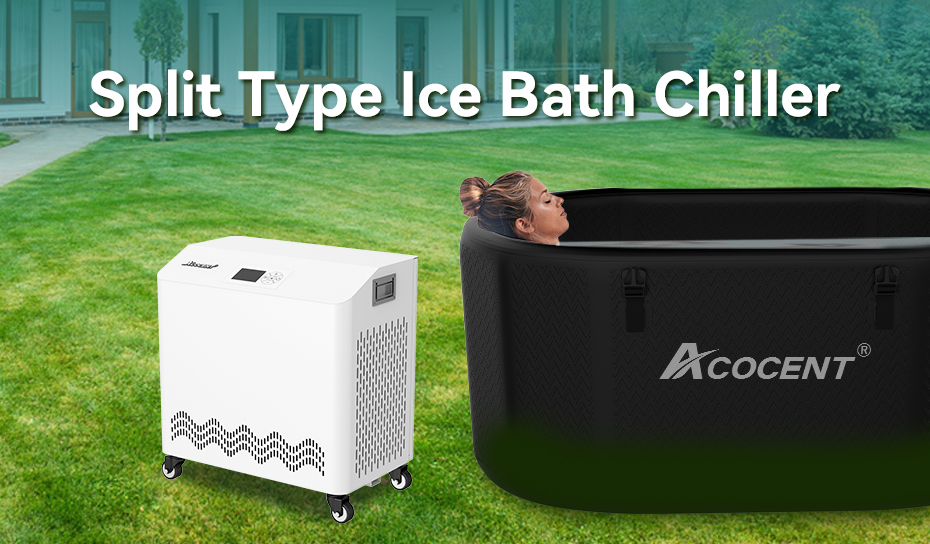

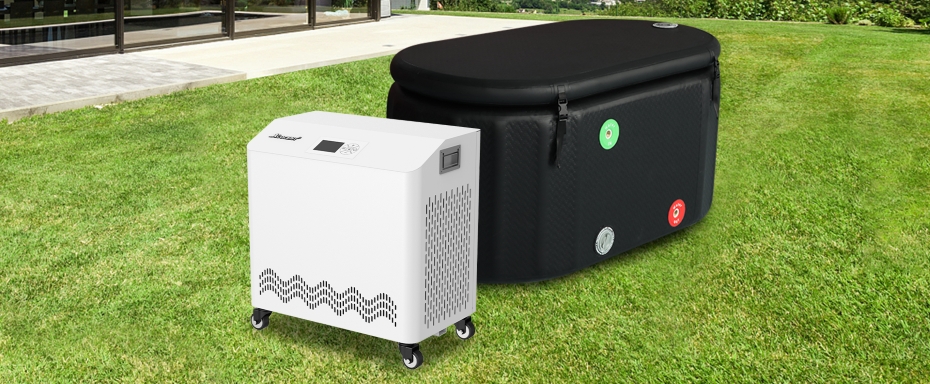

►One-Stop Solution with Inflatable Ice Bath

Pack & Go Perfection

Inflatable Ice Baths are the ultimate in portability. Deflated, they fold to a compact size, allowing for easy storage and transportation.

Easy Setup & Breakdown

Compared to rigid cold plunge tubs, inflatables are a breeze to set up and disassemble. Simply inflate the tub with a pump, fill it with water, and you're ready to plunge.

Superior temperature insulation

Intergrated Lock Design

8cm Brushed material Dimensions: 150x80x65cm

Accessories: Two-way air pump, repair cartridge carrying bag

Water volume:380L




OFFER SHEET -  ICE BATH CHILLER
Model No. AW-25BL3-DB
Type Heating/Cooling
Water Volume&Chilling Time (From 25℃ to 5℃)
Ambient Temp. (30℃)		 50L: ≤0.65h
100L: ≤1.35h
200L: ≤2.7h
300L: ≤4.1h
500L: ≤6.75h
Heating Water Temp. Range (℃) 3~42
Cooling Water Temp. Range (℃) 3~42
Heating operating Ambient Temp. Range (℃) 0~45
Cooling operating Ambient Temp. Range (℃) 0~45
[Cooling] Ambient: 35℃, Water Outlet: 27℃, Humidity: 40%
Cooling Capacity (kW) 2.88
Power Input (kW) 1.13
Current Value (A) 4.91
EER 2.55
[Cooling] Ambient: 27℃, Water Outlet: 5℃, Humidity: 80%
Cooling Capacity (kW) 1.62
Power Input (kW) 0.67
Current Value (A) 2.91
EER 2.42
[Cooling] Ambient 15℃, Water Outlet: 5℃, Humidity: 70%
Cooling Capacity (kW) 1.85
Power Input (kW) 0.79
Current Value (A) 3.43
EER 2.34
[Heating] Ambient: 27℃, Water Inlet/Outlet: 26/28℃, Humidity: 80%
Heating Capacity (kW) 3.72
Power Input (kW) 0.75
Current Value (A) 3.26
COP 4.96
[Heating] Ambient: 15℃, Water Inlet/Outle: 26/28℃, Humidity: 70%
Heating Capacity (kW) 2.55
Power Input (kW) 0.80
Current Value (A) 3.48
COP 3.19
[Heating] Ambient: 27℃, Water Inlet: 38℃, Humidity: 80%
Heating Capacity (kW) 3.46
Power Input (kW) 1.10
Current Value (A) 4.78
COP 3.15
General Information
Pump Input Power (W) 88
Power Supply 220-240V~/50Hz
Max. Power Input (kW) 1.35
Max. Current (A) 5.87
Refrigerant R32
Max. Pressure(Mpa) 4.4
Sound Pressure Level at 1m [dB(A)] 48
Sound Pressure Level at 10m [dB(A)] 32
Comppressor Brand GMCC
Compressor Type Rotary
Water Pipe Connection (mm) φ20
Water Heat Exchanger Plate Heat Exchanger
Circulation Pump Built-in Water Pump
Disinfection Built-in UV Sterilizer (Optional)
Built-in Ozone Generator (Optional)
Water Filter Built-in + External Pre-Filter
Transport wheels Yes(Optional)
Carry Handle Yes
Quick Connectors Yes
Water Proof Level IPX4
Display LED Screen
Air Flow Direction Horizotal
Net Dimensions [(L×W×H) mm] （With wheels） 540×400×550
Wooden Packing Dimensions [(L×W×H) mm] 36670×480×720
Wooden Packing Gross Weight (kg) 55
Loading Capacities (20‘GP/40’GP/40‘HQ) 108/216/216pcs
The above data are for reference only, the specific data are subject to actual product.



PARAMETER-  ICE BATH CHILLER (T3)
Model No. AW-35BL1-T3-DB
Type Cooling and Heating
Water Volume&Chilling Time (From 25℃ to 5℃)
Ambient Temp. (43℃)		   50L: ≤ 0.8h
100L: ≤ 1h
200L: ≤ 2.2h
300L: ≤ 3.5h
500L: ≤ 5.5h
Heating Water Temp. Range (℃) 3-42°C
Cooling Water Temp. Range (℃) 42-3°C
Heating Operating Ambient Temp. Range (℃) 1-53°C
Cooling Operating Ambient Temp. Range (℃) 1-53°C
[Cooling] Ambient: 43℃, Water Outlet: 30℃,Water Flow: 1 m³/h
Cooling Capacity (W) 3300
Power Input (W) 1220
Current Value (A) 5.6
EER 3.00
[Heating] Ambient: 15℃, Water Inlet: 26℃, Humidity: 70%，Water Flow:1 m³/h
Heating Capacity (W) 3850
Power Input (W) 1200
Current Value (A) 5.3
COP 3.2
General Information
Pump Input Power (W) 88
Power Supply 220V/50HZ
Max. Power Input (W) 1300
Max. Current (A) 5.90
Refrigerant R134a
Max. Pressure(Mpa) 4.0MPa
Sound Pressure Level at 1m [dB(A)] 62dB(A)
Sound Pressure Level at 10m [dB(A)] 55dB(A)
Compressor Brand GMCC
Compressor Type Rotary
Water Pipe Connection  1/2"
Water Heat Exchanger Plate Heat Exchanger
Circulation Pump DC water pump
Disinfection Ozone Sterilizer
Disinfection UV Sterilizer ( for option)
Water Filter Built-in Filter
Transport wheels Yes
Carry Handle Yes
Quick Connectors Yes
Water Proof Level IPX4
WiFi Function Yes
Net Dimensions [(L×W×H) mm] 600*400*600
Net Weight (kg) 47
Gross Weight (kg) 61
Wooden Packing Dimensions [(L×W×H) mm] 705*500*800
Loading Quantity (20'GP/40'GP/40'HQ) (pcs) 84/168/168
